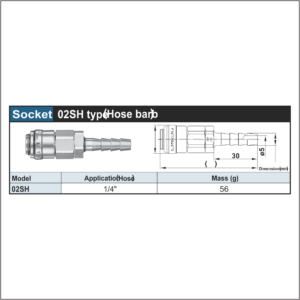

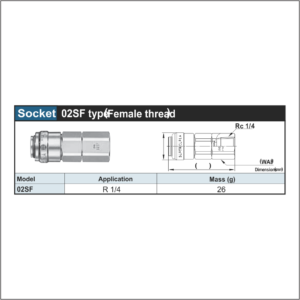

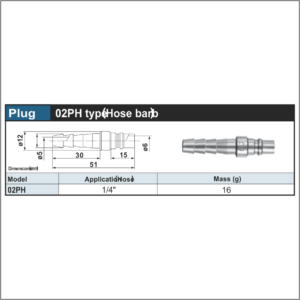

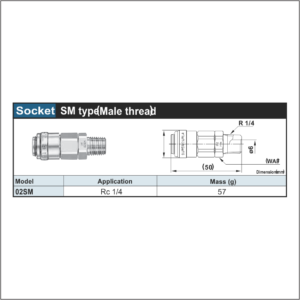

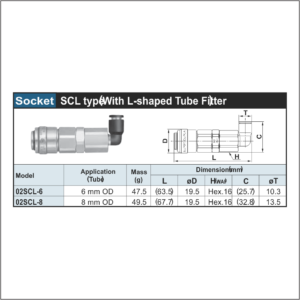

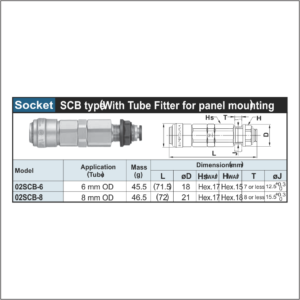

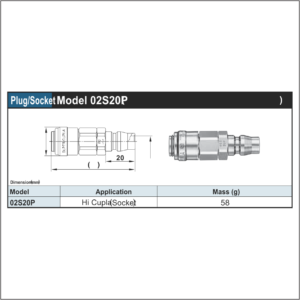

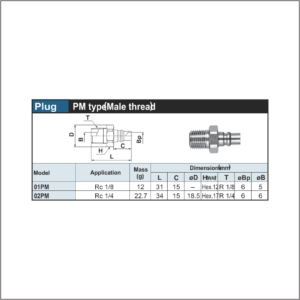

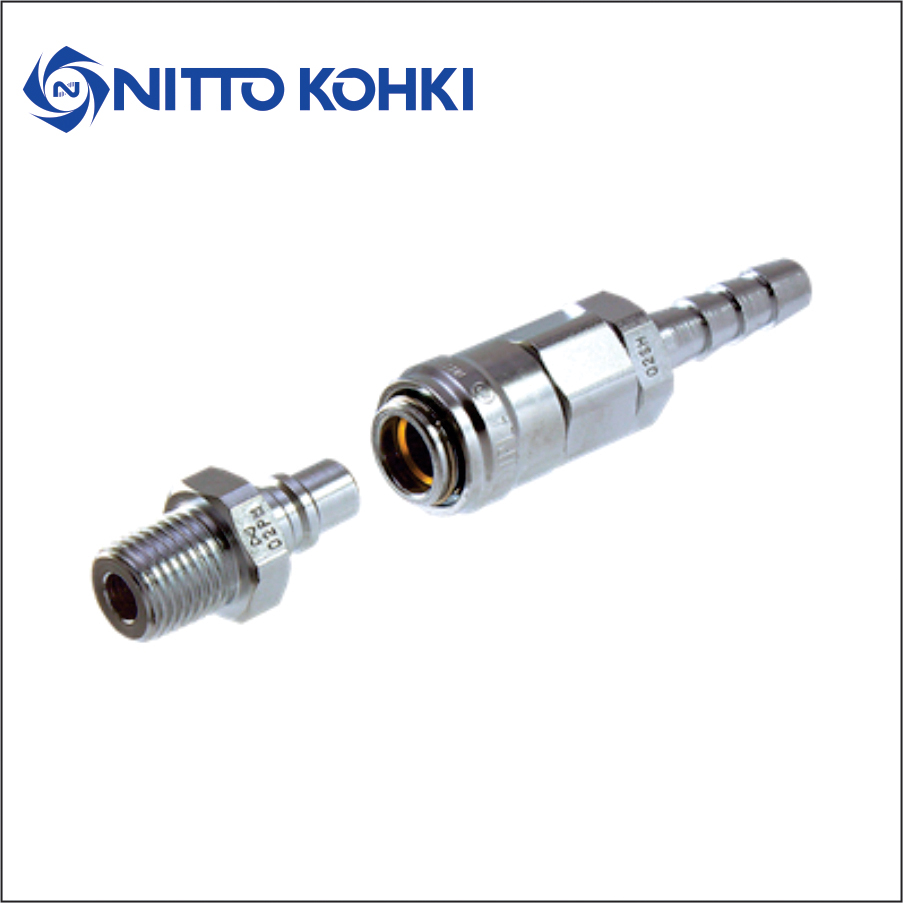

Super Coupler
The lightweight design makes the
Cupla best suited to power tools!
Push-to-connect for easy operation
Open E-Catalog
Related products
Full Blow Coupler
Unique full-open gate type valve mechanism
realizes low pressure loss and high flow rate,
which reduces required source air volume.
The flow rate is increased by up to 40% more then that of conventional
Cuplas.
- During connection and disconnection the valve is closed, enabling connection/disconnection under zero line pressure.
- When the sleeve of socket is returned to its original position, the purge mechanism releases the residual air pressure in the plug, eliminating an unpleasant popping noise and a hose whip back motion on disconnection.
Open E-Catalog
PCV Coupler
For connection to copper pipes
- Clamps direct on to a straight copper pipe eliminating unnecessary welding or flaring -1
- Withstands a vacuum of up to 1.3 x 10 Pa (when connected) making it possible to be used in leak testing, evacuation and refrigerant gas charge.
- Select from three standard types of seal materials to be used with fluids for air conditioner and refrigerator production lines. Many models to suit various pipe sizes.
Open E-Catalog
HSP Coupler
Special steel body is tough against vibration and impact! Male and female thread end configurations are available. Low pressure loss characteristic suits hydraulic equipment applications.
- Quenched special steel body!
- Powerful impact resistance, especially against impulses.
- Automatic shut-off valves in both socket and plug prevent fluid spill out on disconnection. Easy to handle.
- Optional HSP-DC Cuplas are available for die-casting machine applications with severe pressure variation.
Open E-Catalog
450 Coupler
Metal-touch valve system with superior durability! Sleeve stopper mechanism gives secure connection.
- Cupla for higher working pressure up to 44.1 MPa
Open E-Catalog
Micro Coupler
Compact, lightweight Cuplas with only
9.5 mm outer diameter.
Push-to-connect operation. Tube Fitter
type for even easier tube insertion.
Open E-Catalog
350 Coupler
For hydraulic pressures up to 34.5 Mpa {352 kgf/cm2}
- Airless valve shut-off design greatly reduces air admixture!
- Ideal for hydraulic lines with larger pressure fluctuations
- Both socket and plug have built in automatic shut-off valves to prevent fluid spill out when disconnected. Easy to handle.
Open E-Catalog
Hi Coupler
Universal purpose couplings for airlines
From factory airline to pneumatic tool connection, available in various body materials, sizes and end configurations. Excellent durability.
- An excellent general purpose coupling for connecting factory air supply to pneumatic tools.
- Steel coupling is suitable for air. Brass or stainless steel is suitable for water. Note that fluid will come out from the plug when disconnected.
- Critical structural parts of steel models are heat-treated for increased strength giving greater durability and resistance to wear.
- Available in various body materials, sizes and end configurations applicable to a wide range of applications
Open E-Catalog
Zero Spill Coupler
Minimizing spillage during disconnection keeps workshops clean
- Unique seal design reduces both liquid spillage and air ingress
- Reliable zero friction valve
- Push-to-connect design
- One-hand easy operation
- Wide variety of material options available
- Automatic sheet of valve in both sockets and plugs prevent fluid spill out on disconnection
