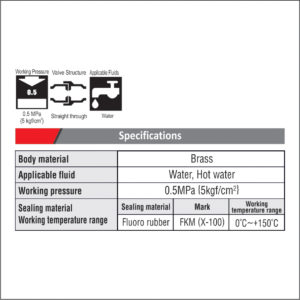

Spot Coupler

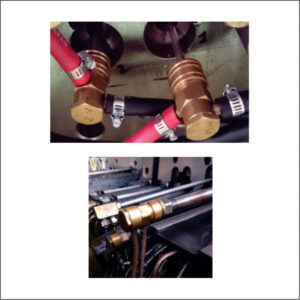

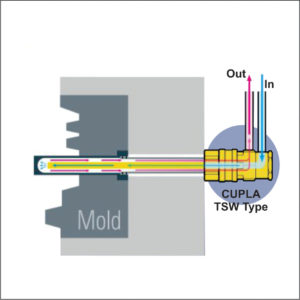

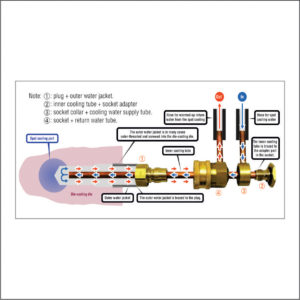

Couplings used in spot cooling system of die-casting dies
Quick-connect design serves for improved efficiency in mold exchange or repair work.
Open E-Catalog
Related products
SP-A Coupler
For Medium Pressure general applications
SP Cupla is totally redesigned
with an increased flow volume of upto 60%
- High flow type SP Cupla is now released.
- Plugs with male thread end are newly added.
- New self aligned valve design provides better seal.
- Smooth and prompt connection
Open E-Catalog
PVC Braided
Renewed design with white lines. Rubber-like touch of
highly elastic resin
Use
- For water supply of machines and factories, air piping and water supply for engineering and construction sites.
- Highly elastic resin is used.
- The fluids can be visually checked easily
Open E-Catalog
HSP Coupler
Special steel body is tough against vibration and impact! Male and female thread end configurations are available. Low pressure loss characteristic suits hydraulic equipment applications.
- Quenched special steel body!
- Powerful impact resistance, especially against impulses.
- Automatic shut-off valves in both socket and plug prevent fluid spill out on disconnection. Easy to handle.
- Optional HSP-DC Cuplas are available for die-casting machine applications with severe pressure variation.
Open E-Catalog
Mold Coupler
Designed for quick replacement for die and mold! Rust resistant models having many variations.
- Space saving design for molds with closely spaced coolant ports.
- Push to connect design. Built in automatic shut-off valve in the socket.
Open E-Catalog
Purge Adapter
Residual Pressure Purge Adaptor for hydraulic lines
- Couplings can be connected smoothly
- Slim and neat piping with an in-line design
Open E-Catalog
350 Coupler
For hydraulic pressures up to 34.5 Mpa {352 kgf/cm2}
- Airless valve shut-off design greatly reduces air admixture!
- Ideal for hydraulic lines with larger pressure fluctuations
- Both socket and plug have built in automatic shut-off valves to prevent fluid spill out when disconnected. Easy to handle.
