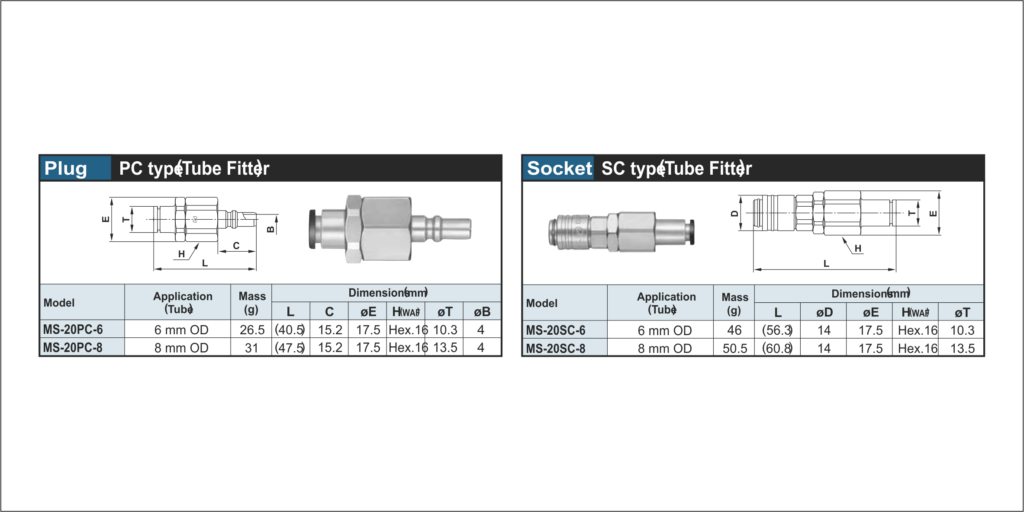

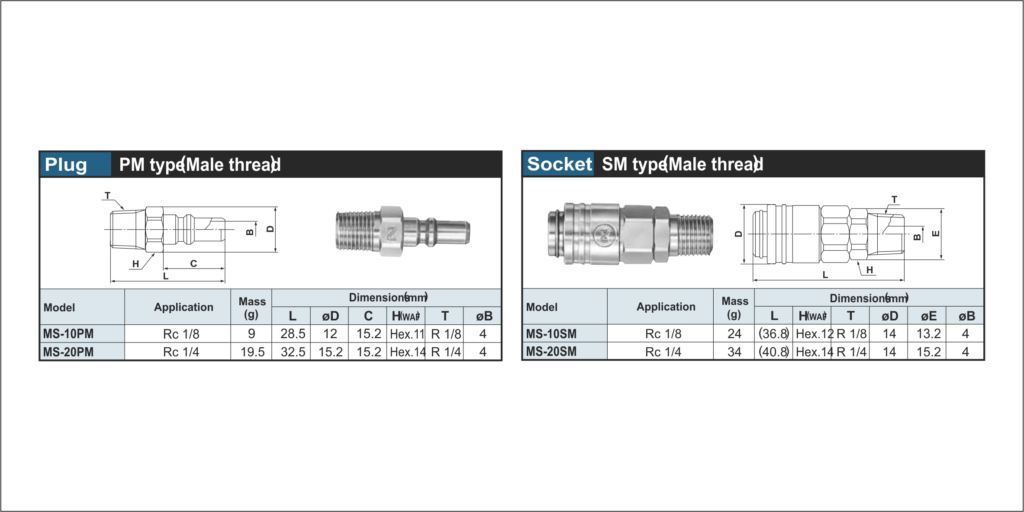

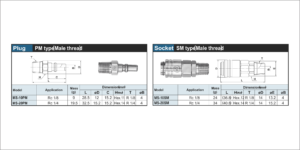

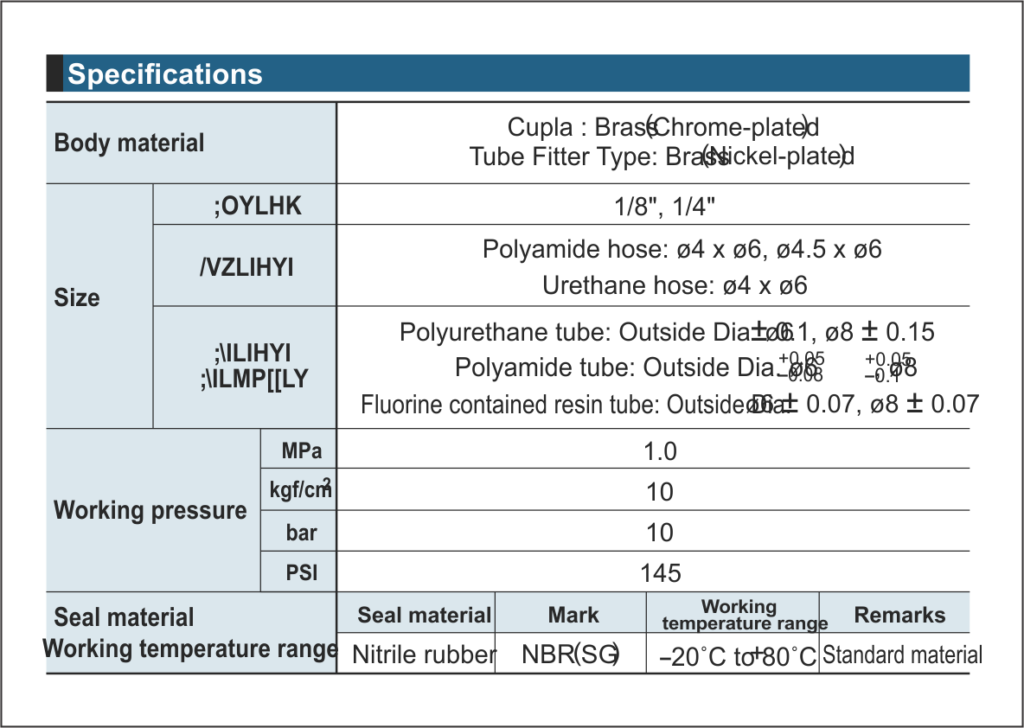

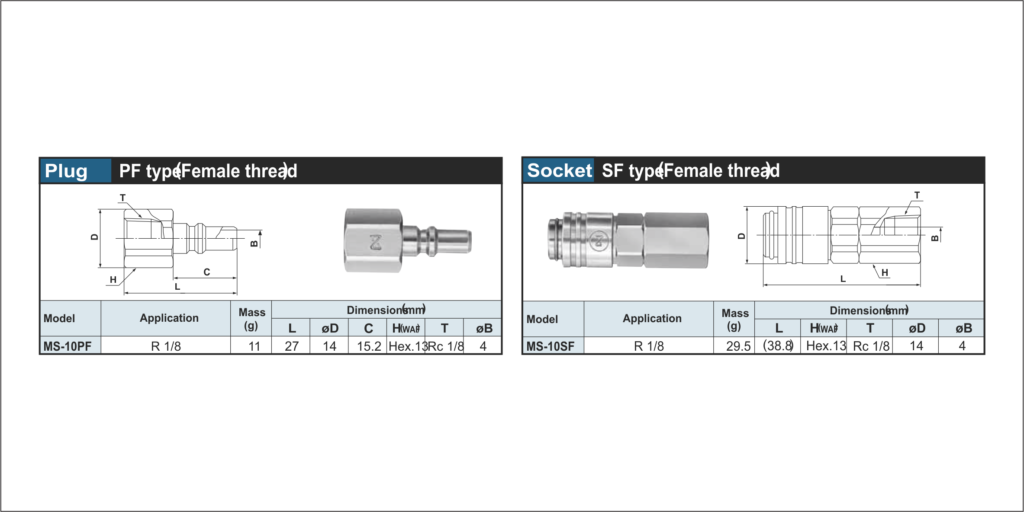

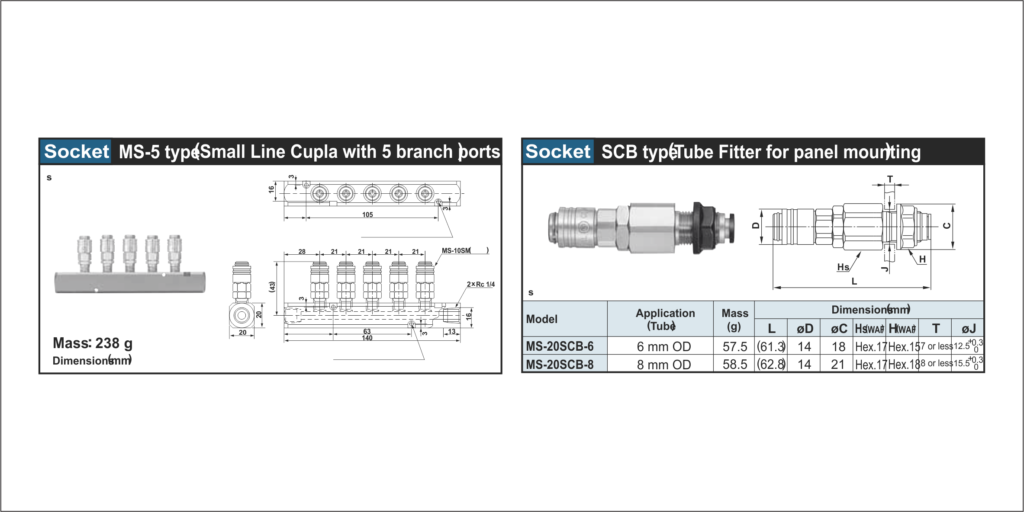

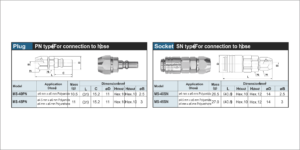

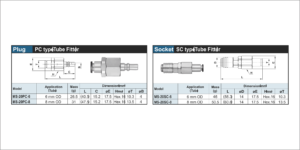

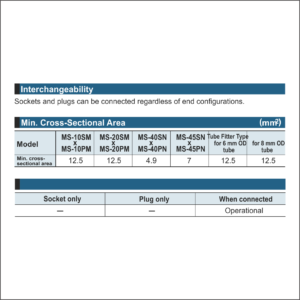

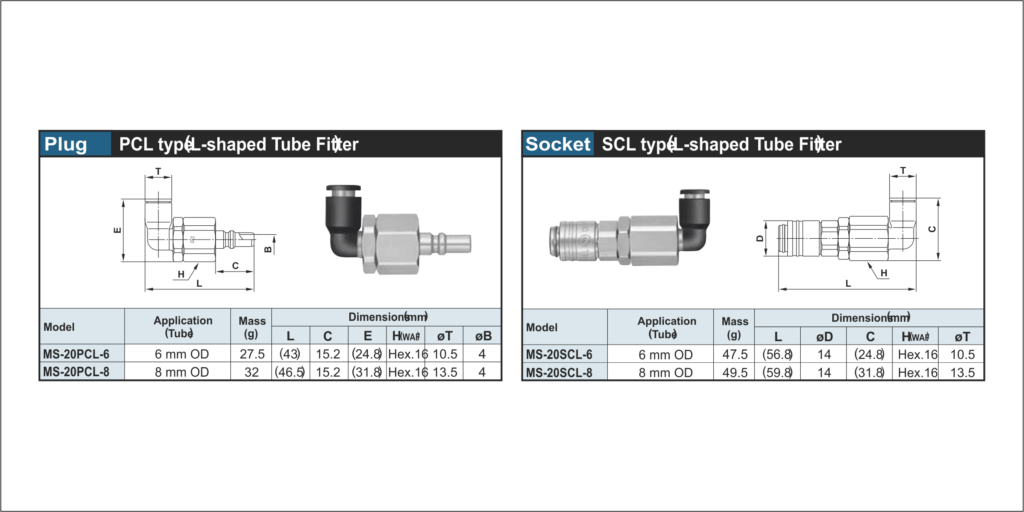

Small Coupler
Lightweight and compact push-toconnect
operation.
Responding to requirements of modular
combinations.
Open E-Catalog
Related products
Zero Spill Coupler
Minimizing spillage during disconnection keeps workshops clean
- Unique seal design reduces both liquid spillage and air ingress
- Reliable zero friction valve
- Push-to-connect design
- One-hand easy operation
- Wide variety of material options available
- Automatic sheet of valve in both sockets and plugs prevent fluid spill out on disconnection
Open E-Catalog
PCV Coupler
For connection to copper pipes
- Clamps direct on to a straight copper pipe eliminating unnecessary welding or flaring -1
- Withstands a vacuum of up to 1.3 x 10 Pa (when connected) making it possible to be used in leak testing, evacuation and refrigerant gas charge.
- Select from three standard types of seal materials to be used with fluids for air conditioner and refrigerator production lines. Many models to suit various pipe sizes.
Open E-Catalog
Mold Coupler
Designed for quick replacement for die and mold! Rust resistant models having many variations.
- Space saving design for molds with closely spaced coolant ports.
- Push to connect design. Built in automatic shut-off valve in the socket.
Open E-Catalog
Mini Coupler
Exclusively for oxyacetylene equipment
Many variations with higher flow rates!
- From cylinders to torches, all piping connections associated with welding and cutting equipment are push-to-connect operations.
- Double-lip seal prevents minor leak during connection. Oxygen and fuel gas Cuplas have different sizes to prevent accidental interconnection. Plugs with backflow stop valve in Mini Cupla are designed for gas welding/cutting to prevent occurrence of gas mixing.
- Pressure loss is minimized to achieve higher flow rate.
- Various types of end configurations have been standardized to comply with a wide range of welding and cutting equipment applications.
Open E-Catalog
Twist & Rotary Plug
Eliminates hose twisting, kinking, or bending! Greatly improves working efficiency!
A plug with a free twisting neck for hose connections to pneumatic tools
and devices.
- Free angle control ( max.70 flexible) provides comfortable job positions, even in narrow spaces or with overhead works.
- The flexible part is reinforced with self-lubricating plastics to give smooth bending action and excellent durability.
- Dust protector over the flexible part prevents dirt and swarf from entering.
Open E-Catalog
Multi Coupler
Simultaneously connects several ports securely in one operation! Greatly cuts cycle time in multiple ports replacement.
- Handles several ports at once.
- Simple manual lever action completes easy connection / disconnection.
- Two stage lever operation prevents Cupla from accidental dropping due to sudden detachment.
- Comes with lock mechanism to prevent accidental disconnection.
- Large flow equivalent to that of SP Cupla Type A.
- Two kinds of plates are available for each size.
- Automatic shut-off valves in both socket and plug prevent fluid spill out on disconnection.
Open E-Catalog
SP-A Coupler
For Medium Pressure general applications
SP Cupla is totally redesigned
with an increased flow volume of upto 60%
- High flow type SP Cupla is now released.
- Plugs with male thread end are newly added.
- New self aligned valve design provides better seal.
- Smooth and prompt connection
Open E-Catalog
Full Blow Coupler
Unique full-open gate type valve mechanism
realizes low pressure loss and high flow rate,
which reduces required source air volume.
The flow rate is increased by up to 40% more then that of conventional
Cuplas.
- During connection and disconnection the valve is closed, enabling connection/disconnection under zero line pressure.
- When the sleeve of socket is returned to its original position, the purge mechanism releases the residual air pressure in the plug, eliminating an unpleasant popping noise and a hose whip back motion on disconnection.
