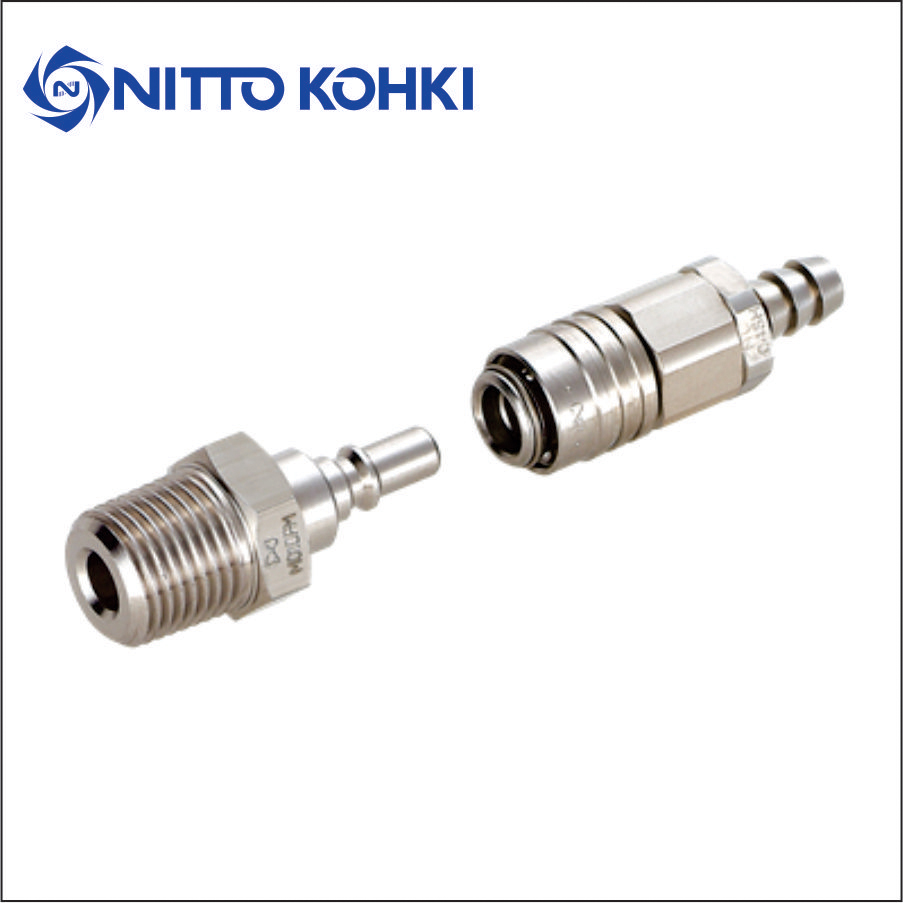

Micro Coupler
Compact, lightweight Cuplas with only
9.5 mm outer diameter.
Push-to-connect operation. Tube Fitter
type for even easier tube insertion.
Open E-Catalog
Related products
Small Coupler
Lightweight and compact push-toconnect
operation.
Responding to requirements of modular
combinations.
Open E-Catalog
Lever Lock (Cam Lock) Coupler
Light lever pull-down will connect the plug and socket without fail ready to flow liquid or gases.
- This Cupla complies with diversified applications in liquid or gas transportation
- End-face seal structure enables no bumps or hollows on the internet fluid passage, and ensures smooth fluid transportation.
Open E-Catalog
Full Blow Coupler
Unique full-open gate type valve mechanism
realizes low pressure loss and high flow rate,
which reduces required source air volume.
The flow rate is increased by up to 40% more then that of conventional
Cuplas.
- During connection and disconnection the valve is closed, enabling connection/disconnection under zero line pressure.
- When the sleeve of socket is returned to its original position, the purge mechanism releases the residual air pressure in the plug, eliminating an unpleasant popping noise and a hose whip back motion on disconnection.
Open E-Catalog
700R Coupler
High pressure Cupla for working pressures up to 68.6 MPa. Unique sleeve ring-lock system copes with vibration and impact when connected.
Features
1. For Hydraulic Pressures upto 700 Bar
2. Unique Sleeve ring-lock system copes with vibration and impact when connected
3. Metal-touch valves use no rubber seal and thus ensure excellent durability
4. Both plug & socket have metal-touch automatic shut-off valves that prevent fluid spill out on disconnection.
Open E-Catalog
350 Coupler
For hydraulic pressures up to 34.5 Mpa {352 kgf/cm2}
- Airless valve shut-off design greatly reduces air admixture!
- Ideal for hydraulic lines with larger pressure fluctuations
- Both socket and plug have built in automatic shut-off valves to prevent fluid spill out when disconnected. Easy to handle.
Open E-Catalog
450 Coupler
Metal-touch valve system with superior durability! Sleeve stopper mechanism gives secure connection.
- Cupla for higher working pressure up to 44.1 MPa
Open E-Catalog
SP-A Coupler
For Medium Pressure general applications
SP Cupla is totally redesigned
with an increased flow volume of upto 60%
- High flow type SP Cupla is now released.
- Plugs with male thread end are newly added.
- New self aligned valve design provides better seal.
- Smooth and prompt connection
Open E-Catalog
Hi Coupler 200
Simple and secure push-to-connect type! Big flow rate! End-face seal design. Gives excellent handling touch.
- Just push the plug into the socket for simple ans secure connection.This reduces connection.This reduces connection time and improves efficiency.
- New value design for pressure loss to achieve flow rate increse
- End-face seal is achieved when connected.
- Enhanced operability with low connection resistence
- Available only with quick connect/disconnect tube filter type.
